Nissan GTR R35 2015 - Carbon Fiber Interior   Carbon fiber interior parts made of carbon fiber: steering wheel shifter center console decorative seat elements door sills door skins subwoofer cover steering shifter paddles     Photos: Bat Chavo Inside & Jakob Rosen on Unsplash

Porsche Cayenne Turbo S2017 Carbon Fiber Exterior Parts

Subaru Impreza WRX STi 2012 Red Carbon Fiber Interior

Carbon fiber fabric 420 gr Carbon fiber fabric 420 g with high quality and dense knitting. Suitable for the production of any type of carbon fiber products using all well-known technological processes of production. cosmetic lamination details vacuum casting vacuum infusion Areal weight: 420 g / m2 Weaving style: Twill 2x2 Width: 1.00 meter Warp: 12K TC36 carbon fiber, 50%, 2.4 ends(threads) / cm Weft: 12K TC36 carbon fiber, 50%, 2.4 ends / cm MECHANICAL PROPERTIES OF CARBON FIBER USED Tensile strength (MPa): 4680 Tensile modulus (GPa): 250 Elongation at break (%): 1.9 We sell the carbon fiber fabric at one-meter width. Specifications: You can see the technical sheet here

Carbon fiber fabric 600 g Carbon fiber fabric 600 g with high quality and dense knitting. Suitable for the production of any type of carbon fiber products using all well-known technological processes of production. cosmetic lamination details vacuum casting vacuum infusion Areal weight: 600 g / m2 Weaving style: Twill 2x2 Width: 1.00 meter Warp: 12K T300 carbon fiber, 50%, 2.4 ends(threads) / cm Weft: 12K T300 carbon fiber, 50%, 2.4 ends / cm MECHANICAL PROPERTIES OF CARBON FIBER USED Tensile strength (MPa): 4680 Tensile modulus (GPa): 250 Elongation at break (%): 1.9 We sell the carbon fiber fabric at one-meter width. Specifications: You can see the technical sheet here

Fiberglass Aluminium Fabric - "Silver Carbon Fiber" Most often known as Silver Carbon Fiber. Very soft, bright, aluminum-coated fabric with deep 3D impression. Perfect for all kind of carbon fiber products Areal weight: 290 g / m2 Weaving style: Twill 2X2 Width: 1.00 meter Warp: EC9 68X3 tex fiber, 50%, 7 ends (threads) / cm Weft: EC11 204 tex fiber, 50%, 7 ends / cm

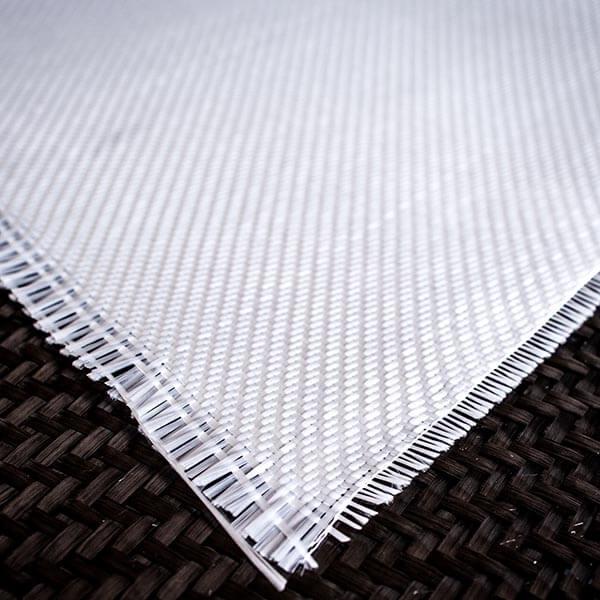

Fiberglass fabric 390 g Fiberglass fabric, which is suitable for the production of all kinds of fiberglass parts Weight: 390g Width - 1 meter Gossip - 12 - straight

Epoxy resin SIka CR81 The epoxy resin is suitable for vacuum infusion but is also ideal for manual lamination. Hardener: CH80-1 Mixing ratio: 100 to 30 Color: transparent, imperceptibly yellowish The viscosity of the mixture, 25 ° C: 460 mPa.S Open time, 25 ° C: 50min Complete curing, 25 ° C: 24-28 h Recommended heating (tempering) at 60-80 ° C. The price is for a set of resin + hardener with a total weight of 1 kg.

High-quality peel ply fabric, which is used for manual lamination. Serves as a separating layer between resin-treated fabric (carbon fiber, Kevlar, etc.) and other parts of the composite structure. After the structure hardens, this layer peels off and remains a slightly rough but flat finish. Nylon 66 peel ply Weight: 85 g / m2 Width:  1.52 meters Temperature: 230 C Color: white with a red line Price is for one meter linear.
